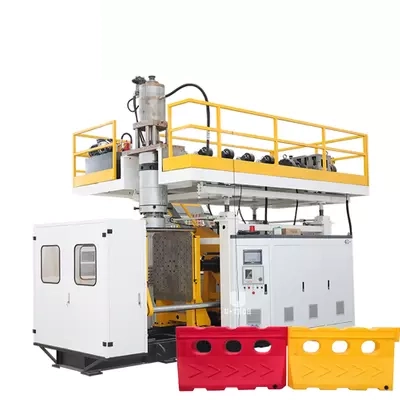

Automatic jerry can drum hdpe blue open top barrel board fuel tank extrusion blow molding machine

The BST series extrusion blow molding machine is used to produce all kinds of the hollow plastic containers for
foods,toys,beverages, medicines, chemical products, pesticides, detergents, etc with material of HDPE,PE,PP,PVC from 5ml to 20L,such as water bottles,milk bottles,medical bottles,oil bottles,plastic balls,cosmetic bottles,lubricant bottles,plastic containers. The machines are low investment, high efficiency, quick and safe operation, easy for trouble shooting, maintenance and Other benefit.

Product Introduction

The BST series extrusion blow molding machine is used to produce all kinds of the hollow plastic containers for foods,toys,beverages, medicines, chemical products, pesticides, detergents, etc with material of HDPE,PE,PP,PVC from 5ml to 20L,such as water bottles,milk bottles,medical bottles,oil bottles,plastic balls,cosmetic bottles,lubricant bottles,plastic containers. The machines are low investment, high efficiency, quick and safe operation, easy for trouble shooting, maintenance and Other benefit.

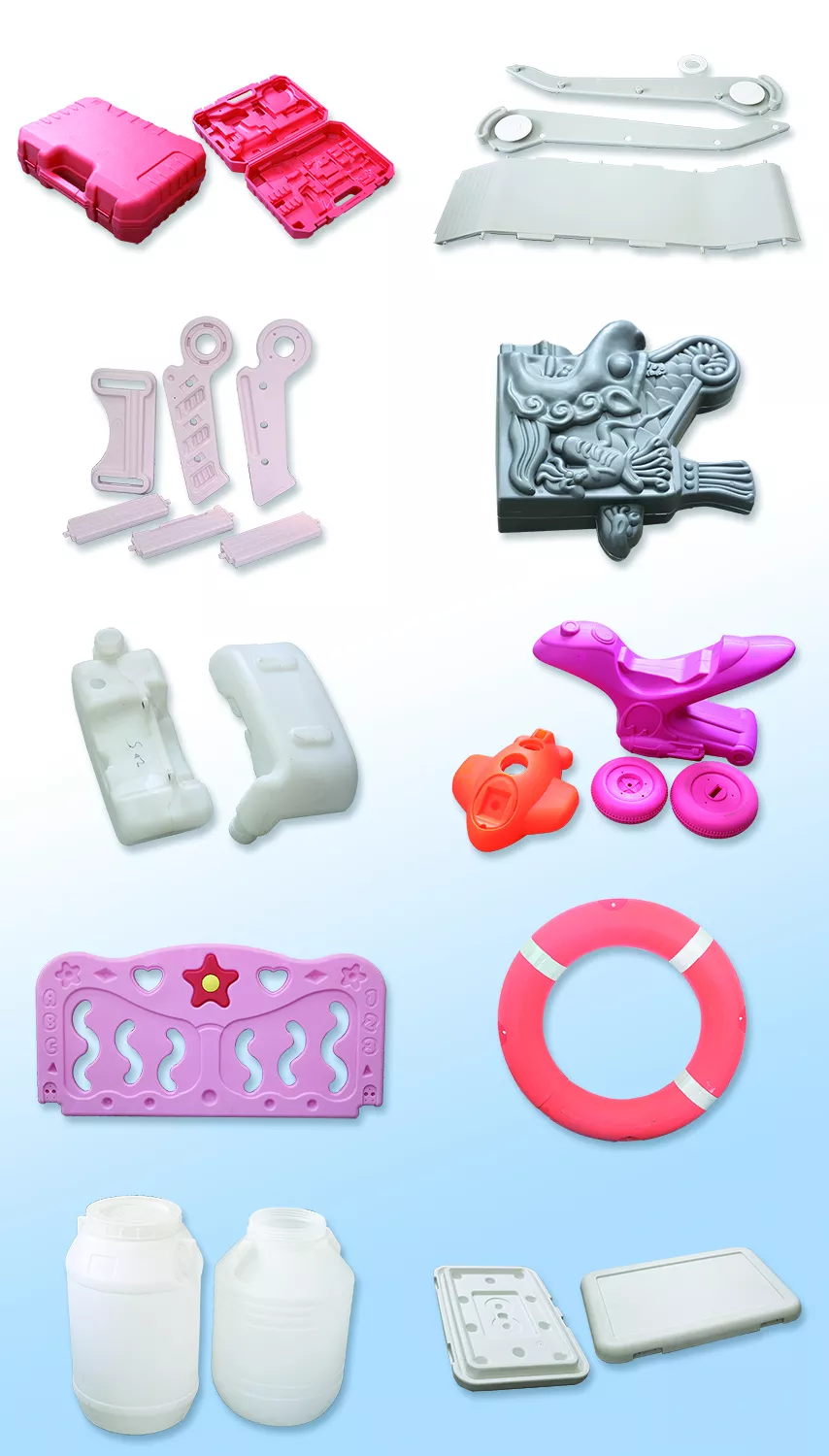

Application

Machine details

Auxiliary Equipment

Package and Delivery

Model	BST65
Max. Product Volume	5L
Dry cycle	700 (pc/h)
Screw Diameter	65 (mm)
Screw L/D ratio	25 (L/D)
Screw drive power	15 (KW)
Screw heating capacity	5.04~6.7 (KW)
No. of heating zone	3 (ZONE)
Max. Output of HDPE	60 (Kg/hr)
Oil pump drive power	7.5 (KW)
Clamping force	60 (KN)
Platen distance	148~508 (mm)
Mold moving stroke	380 (mm)
Max. Size of Mold(W*H)	370*390 (mm)
Max. Die diameter	145 (mm)
Die heat capacity	2.5 (KW)
No. of heating zone	3 (ZONE)
Central distance of Double head	160,180 (mm)
Blowing pressure	0.6 (Mpa)
Air volume	0.4 (M3/MIN)
Cooling water pressure	0.2~0.3 (Mpa)
Water consumption	50 (L/MIN)
Size of machine ( LWH)	3.431.772.58 (m)
Weight of machine	4 (TON)
