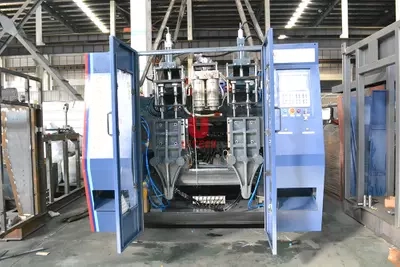

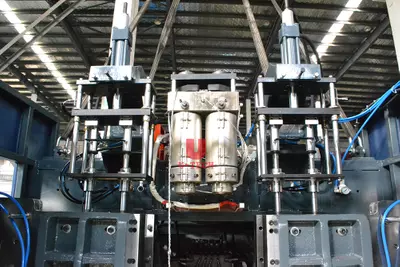

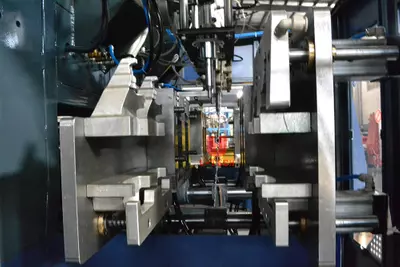

1-5L HDPE PP PE Extrusion Blow Molding Machine

Extrusion blow molding machine is used to produce all kinds of the hollow plastic containers for foods, toys, beverages, medicines,chemical products, pesticides&detergents, water bottles,milk bottles,medical bottles,oil bottles,plastic balls,cosmetic bottles,lubricant bottles,plastic containers. The machines are low investment, high efficiency, quick and safe operation, easy for trouble shooting, maintenance and other benefit.

Introduction

Application

Components list

COMPONENTS NAME	BRAND	ORIGIN
PLC	MITSUBISHI	Japan
Operation screen	SIMENS	Germany
Parison control system	MOOG	Japan
Inverter	MITSUBISHI	Japan
Pneumatic parts	FESTO	Germany
Hydraulic pump and valve	YUKEN	Japan
Transducer	GEFRAN	Italy
Contactor	SCHNEIDER	France
Relay	SCHNEIDER	France

Specifications	BST70	BST80	BST90
Screw diameter	70 mm	80 mm	90 mm
Screw L/D ratio	25:1 L/D	25:1 L/D	25:1 L/D
Plasticising capacity	80 kg/hr	100 kg/hr	120 kg/hr
number of heating zone	10 KW	12.5 KW	12.5 KW
extruder driving power	4 zone	5 zone
extruder heating power	15 KW	22 KW	30 KW
number of heating zone	3 zone	3 zone	4 zone
power of die heating	4 KW	6 KW	8 KW
max die-pin diameter	250 mm	350 mm	400 mm
accumulator capacity	3 kg	4 kg	6 kg
Max container capacity	20 L	30 L	50 L
machine dimension	42.62.7 M	53.13.2 M	53.13.9 M
total weight	4.5 tom	7 tom	9 tom
clamping force	160 KN	300 KN	400 KN
platen opening stroke	250-800 mm	350-1050 mm	350-1250 mm
max mould size	520*600 mm	700*1000 mm	900*1200 mm
mould thickness	260-400 mm	360-500 mm	360-600 mm
Oil pump motor	7.5 KW	11 KW	11 KW
total power	40 KW	63 KW	70 KW
fan power for screw	0.72 KW	0.72 KW	0.72 KW
air pressure	0.7 mpa	0.7 mpa	0.7 mpa
air consumption	0.9 m 3 /min	0.9 m 3 /min	0.9 m 3 /min
average energy consumption	20 KW	28 KW	35 KW
